Groove type fluorescence penetration detection equipment
槽式說明（Slot description）：
熒光滲透檢測一般用于非磁性材料、鋁合金、不銹鋼葉輪、葉片等非多孔型材料和零件的熒光滲透檢查，包括加工缺陷和使用中產生的缺陷，適用于航空、航天和汽車零部件等項目的檢測。該設計和制造必須滿足HB/Z61-98、EN571、GJB2367A-2003等工藝規范要求。
Fluorescent penetrant inspection is generally used for non-porous materials and parts such as non-magnetic materials, aluminum alloys, stainless steel impellers, blades and the like, including processing defects and defects generated in use, and is suitable for testing items such as aviation, aerospace and automobile parts. The design and manufacture must meet the requirements of HB/Z61-98, EN571, GJB2367A-2003 and other process specifications.

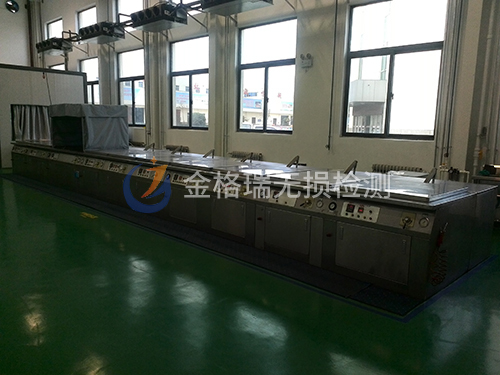

熒光滲透檢測系統主要由自乳化滲透槽、滴落槽、溫水清洗槽、噴淋清洗及補充清洗槽、熱風烘干槽、顯像槽，等多個槽體及提供熱水的熱水槽、檢測暗室、等組成；配套及輔助設施由電氣控制系統、氣動控制系統、輸送系統、加熱及管路系統、工業水管路系統等設備組成。
The fluorescence permeation detection system mainly comprises a self-emulsifying permeation tank, a dripping tank, a warm water cleaning tank, a spray cleaning and supplementing cleaning tank, a hot air drying tank, a developing tank, a plurality of tank bodies, a hot water tank for supplying hot water, a detection darkroom, and the like; Supporting and auxiliary facilities consist of electrical control system, pneumatic control system, conveying system, heating and pipeline system, industrial water pipeline system and other equipment.
