    通過式清洗機

    詳細介紹

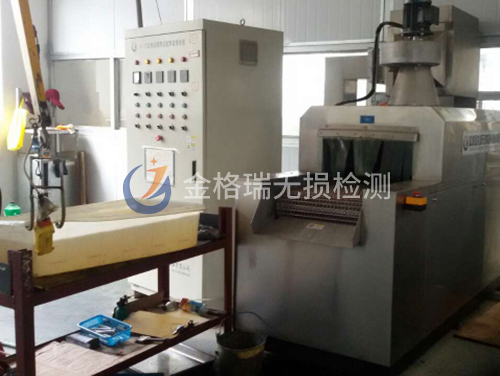

    通過式清洗機

    Pass-through cleaning equipment


    概述(Summarize):

    JGR-QX全自動履帶式超聲波清洗線適用于去除零部件內外面附著的油污、灰塵等雜質。該設備有1個噴淋清洗室、1個超聲波清洗室、1個噴淋漂洗防銹室、1個壓縮空氣切水室、1個熱風烘干室,共5個工位。其工作原理是人工將欲清洗工件放置不銹鋼履帶上,然后按照一定的工藝程序清洗、烘干后卸料。設備外形美觀,結構合理,使用壽命長,是理想的金屬件清洗設備。

    JGR-QX full-automatic crawler ultrasonic cleaning line is suitable for removing oil stains, dust and other impurities attached inside and outside parts. The equipment has a spray cleaning chamber, an ultrasonic cleaning chamber, a spray rinsing antirust chamber, a compressed air water cutting chamber and a hot air drying chamber, with a total of 5 stations. The working principle is to manually place the workpiece to be cleaned on the stainless steel crawler, then clean and dry the workpiece according to a certain technological procedure, and then discharge the workpiece. The equipment has beautiful appearance, reasonable structure and long service life. It is an ideal cleaning equipment for metal parts.

    設備具有如下特點(The equipment has the following characteristics):

    清洗工件自動傳送;

    Automatic Transfer of Cleaning Workpieces;

    超聲振子上下兩面輻射;

    The upper and lower surfaces of the ultrasonic vibrator radiate;

    噴淋漂洗能除去工件上殘留清洗液,減少二次污染;

    Spray rinsing can remove the residual cleaning liquid on the workpiece and reduce secondary pollution;

    增設儲液箱、清洗液循環過濾系統,保證清潔度;

    A liquid storage tank and a cleaning liquid circulation filtering system are additionally arranged to ensure cleanliness;

    專用不銹鋼網帶采用特殊工藝制成,使設備運行安全可靠;

    Special stainless steel mesh belt is made of special technology, which makes the equipment safe and reliable;

    根據工件清潔度要求,任意調節清洗時間;

    According to the requirements of workpiece cleanliness, the cleaning time can be adjusted arbitrarily;

    電氣部分及控制箱與整機分體安裝與操作方便;

    The electrical part, control box and the whole machine are separately installed and operated conveniently;

    上部防塵蓋使設備完整美觀。

    The upper dust cover makes the equipment complete and beautiful.

    設備主要構成(Main components of equipment):

    上、下料臺:1套(設備主線兩端)

    Upper and lower feeding tables: 1 set (both ends of main line of equipment)

    退磁系統:1套(用戶自備)

    Demagnetization system: 1 set (user-provided)

    噴淋清洗系統:1套

    Spray cleaning system: 1 set

    超聲波清洗系統:1套

    Ultrasonic cleaning system: 1 set

    噴淋漂洗防銹系統:1套

    Spray rinsing antirust system: 1 set

    壓縮空氣切水系統:1套

    Compressed air water cutting system: 1 set

    熱風烘干系統:1套

    Hot air drying system: 1 set

    支架:1套

    Bracket: 1 set

    不銹鋼履帶:1套

    Stainless steel track: 1 set

    外封:1套

    External seal: 1 set

    電控系統:1套

    Electric control system: 1 set

    主要工藝流程(Main process flow):

    清洗流程:手工上料→退磁→噴淋清洗(噴淋泵+電加熱溫控)→超聲波清洗(超聲波+電加熱溫控)→噴淋漂洗防銹(噴淋泵+電加熱溫控)→壓縮空氣切水→熱風烘干(風機+空氣加熱)→手工下料

    Cleaning process: manual feeding → demagnetization → spray cleaning (spray pump+electric heating temperature control) → ultrasonic cleaning (ultrasonic+electric heating temperature control) → spray rinsing antirust (spray pump+electric heating temperature control) → compressed air water cutting → hot air drying (fan+air heating) → manual feeding
