Round steel demagnetization equipment：
零部件經過加工和探傷后會殘留磁場，直接影響加工和使用，所以必須要進行退磁。工件表面的磁場性質和工件特定的環境有很大關系，不是所有的磁場都是一個特性，分直流磁場、交流磁場、不規則磁場等，必須要針對磁場特性選擇不同退磁方法，直流一般要選用直流專用退磁，交流選擇交流退磁方法，我們?yōu)槟峁└鞣N不同的退磁設備。
Parts will remain magnetic field after processing and flaw detection, directly affecting processing and use, so demagnetization is necessary. The nature of the magnetic field on the surface of the workpiece has a great relationship with the specific environment of the workpiece. Not all magnetic fields are a characteristic. They are divided into direct current magnetic field, alternating current magnetic field and irregular magnetic field. Different demagnetization methods must be selected according to the characteristics of the magnetic field. Direct current usually uses direct current special demagnetization method, alternating current demagnetization method. We provide you with various demagnetization equipment.
圓鋼專用退磁機是專門用于圓鋼、鋼管等長軸棒類工件的專用退磁設備，適用于直徑Φ14-220mm之間的圓鋼、鋼管等長軸棒類工件。可以安裝在工件的傳送線上，與工件傳送線有機的結合，實現工件的有效退磁。該設備主要由電源系統、控制系統、操作系統、退磁系統等幾大部分組成。

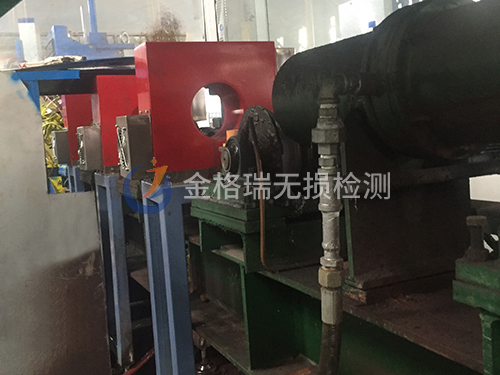

Special demagnetization machine for round steel is a special demagnetization equipment specially used for long-axis bar workpieces such as round steel and steel pipes, which is suitable for long-axis bar workpieces such as round steel and steel pipes with diameters between 14 and 220 mm. Can be installed on a workpiece conveying line and organically combined with the workpiece conveying line to realize effective demagnetization of the workpiece. The equipment is mainly composed of power supply system, control system, operating system, demagnetization system, etc
設備的主要技術參數（Main technical parameters of equipment）：
1、直流磁化電源：0-60V/10A 連續可調、數字顯示、恒流輸出；
DC Magnetized Power Supply: 0-60V/10A Continuously Adjustable, Digital Display, Constant Current Output
2、直流退磁電源：0-60V/10A連續可調、數字顯示、恒流輸出；
DC demagnetization power supply: 0-60V/10A continuously adjustable, digital display, constant current output;
3、交流退磁電源：380V/15A 數字顯示；
AC demagnetization power supply: 380V/15A digital display;
4、直流磁化線圈中心磁場強度：≥500Gs；
Central magnetic field strength of DC magnetizing coil: ≥ 500 GS;
5、直流退磁線圈中心磁場強度：≥450Gs；
Central magnetic field strength of DC demagnetization coil: ≥ 450 GS;
6、交流退磁線圈中心磁場強度：≥300Gs；
Central magnetic field strength of AC demagnetization coil: ≥ 300 GS;
7、輥道傳送速度：約1000 mm/s；
Roller table conveying speed: about 1000 mm/s;
8、退磁效果：≤15Gs（單根測量）；
Demagnetization effect: ≤15Gs (single measurement)
9、設備電源：三相四線 380V±10% 30A
Equipment power supply: 3-phase 4-wire 380 v 10% 30a
10、外形尺寸：2000（L）×500（W）×1200（H）mm；
Overall dimensions: 2000 (l) × 500 (w) × 1200 (h) mm;
11、使用環境：相對濕度：不大于85％；環境溫度：-10℃～+45℃；
Use environment: relative humidity: not more than 85%; Ambient temperature:-10℃ ~+45℃;
12、重量：500Kg。
Weight: 500Kg.
